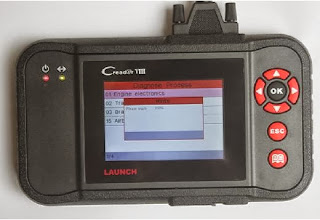

How to use Launch X431 Creader VIII Diagnostic Tool

The Creader VIII DLC (Data Link Connector or Diagnostic Link Connector) is the standardized
16-cavity connector where diagnostic scan tools interface with the vehicle's on-board
computer. The DLC is usually located 12 inches from the center of the instrument
panel (dash), under or around the driver’s side for most vehicles. If Data Link
Connector is not located under dashboard, a label should be there telling location. For
some Asian and European vehicles, the DLC is located behind the ashtray and the
ashtray must be removed to access the connector. If the DLC cannot be found, refer to
the vehicle’s service manual for the location.
2Diagnostic Trouble Codes (DTC) that identify which section of the emission
control system has malfunctioned

Generic OBDII Diagnostics
The OBD II Diagnostics function is a fast-access option that allows you to carry out a
quick test on the engine system of OBD II vehicles
If the manufacturer of your vehicle is not listed, use the UP/DOWN scroll button to
select Other and press the OK button.

Launch X431 Creader VIII Review
Launch X431 Creader VIII Software Update
This function allows you to update the scan tool software through a computer.
If you are a new user, slide right arrow next to Register to enter registration page
If you have registered to be a member, input your name/CC and password in Fig. 3-4,
and then click the “Log In” button to enter the main menu screen directly
